ADS – Peripherals

Linear track vibratory feeders

Linear track vibratory feeders are used to carry parts, prevent build-ups and guarantee smooth feeding of parts for the downstream process. They consist of a linear vibrator and can be combined with a saturation sensor that can pause the operation of the vibratory bowl.

Dimensions and type of equipment adapted to the application.

Rail vibrant pour l'industrie cosmetique

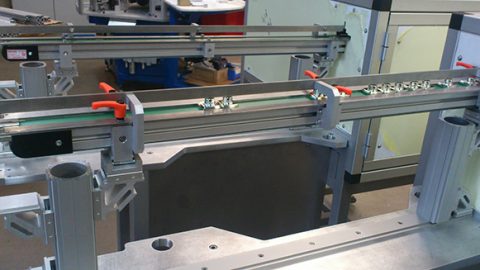

Convoyeur et rail vibrant

Conveyors

Conveyors are used to carry parts, prevent build-ups and guarantee smooth feeding of parts for the downstream process. They can be combined with a saturation sensor that can pause the operation of the vibratory bowl. Motor positioned centrally or at the end of the conveyor.

Dimensions adapted to the application.

Storage hoppers

Storage hoppers are used to automatically supply the parts feeding system.

ADS hoppers come in 5, 15, 25 and 50-litre vibrating versions, as well as in 50, 100, 150, 200 and 400-litre belt elevator versions.

They are coupled with a level gauge that triggers the operation of the hopper.

We offer all types of steel and stainless-steel hoppers.

Trémies de stockage et rail vibrant
Trémie de stockage vibrante

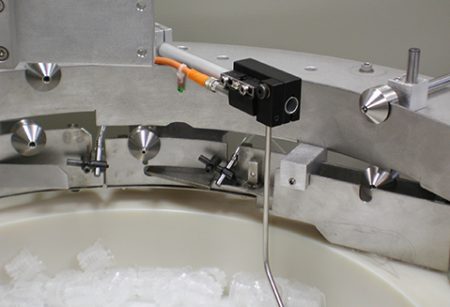

Level gauges

The purpose of a level gauge is to detect a low level of parts in a vibratory or centrifugal bowl feeder.
Gauges are available with contact or contactless sensors.

Palpeur de niveau mÇcanique
Insonorisation

Soundproofing enclosure

The purpose of a soundproofing enclosure is to dampen the noise generated by the machinery to a level that meets the standards applicable.
It consists of a structure made of aluminium profiles, board and acoustic foam.
